Système perfusion pression VCPlus-8
Rapid focal perfusion is critical for establishing experimental conditions, such as dose response curves. Electronic control of solution exchange is the only way to ensure rapid fluid delivery and reproducibility. By using a VCPlus-8 pressure system with focal outlet, you can configure the system for very basic perfusion requirements or you can optimize the system for the most demanding applications of patch-clamp recording and/or imaging.
VCPlus-8 pressure systems drive fluid by using pressure.

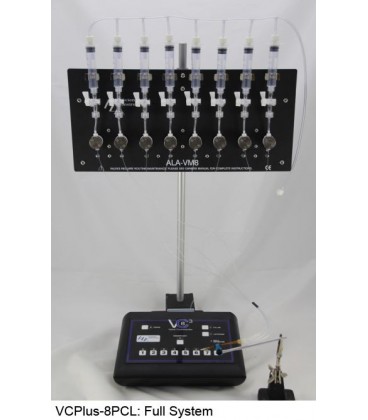

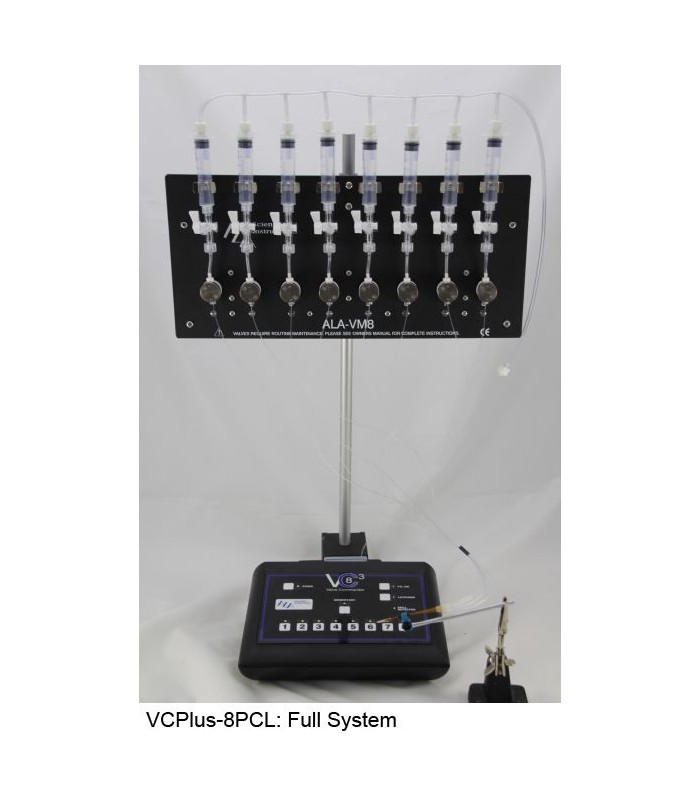

Pressure driven systems can perfuse solution through tubing with very small ID’s. They are ideal for use in focal applications where only a small amount of solution is needed around the preparation. Pressurization also means faster switch rates at the cell membrane. This focal application is especially useful for researchers looking for dose response curves. Pressurized systems include valve manifold with isolation or pinch valves, 5ml pressurized reservoirs, VCPlus controller, power supply, magnetic stand, spill sensor, USB-C cable, and software. Quartz MicroManifold® (QMM) perfusion outlet, BOB-8 TTL breakout box, compression fittings (CF), PR-10 Pressure Regulator, and spill sensor are sold separately.
Key features of the VCPlus-8xP Series include:

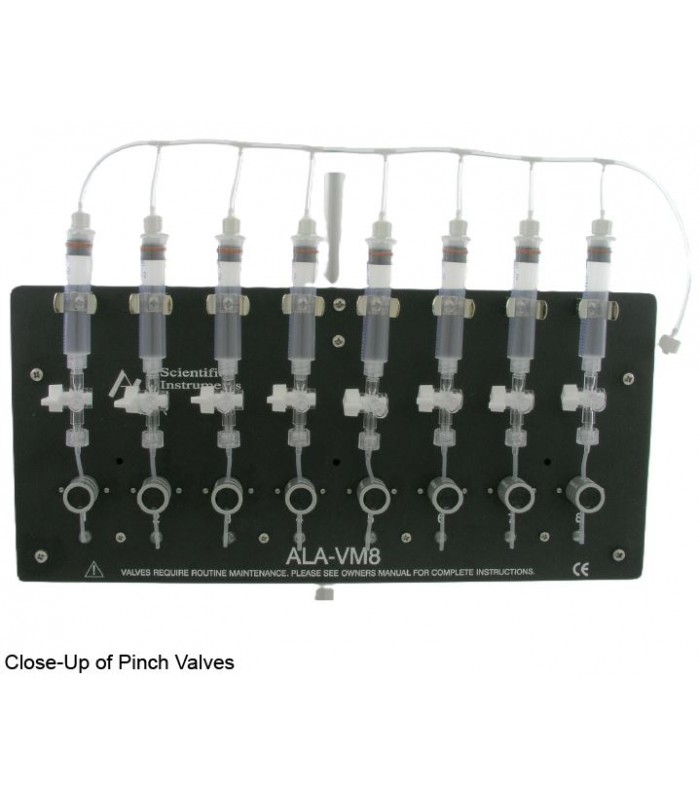

- Choice of low-maintenance pinch valves or fast-response isolation
valves - Customizable reservoir sizes and materials
- DAQ control via analog or TTL input
- Valve control through DAQ, supplied software, or controller
- Optional spill sensor with automatic shutoff to protect microscope
optics - Quartz MicroManifold® perfusion outlet options for low volume and rapid solution exchange applications
- TTL timestamp to indicate valve opening
- Spike and hold circuit for each valve for rapid valve opening and cool valve operation
